ASUS nVidia Dual GeForce RTX™ 3060 12G OC Edition, 12GB GDDR6, 3584 CUDA, 15Gbps, 192-bit, PCIe 4.0, 2-Slot

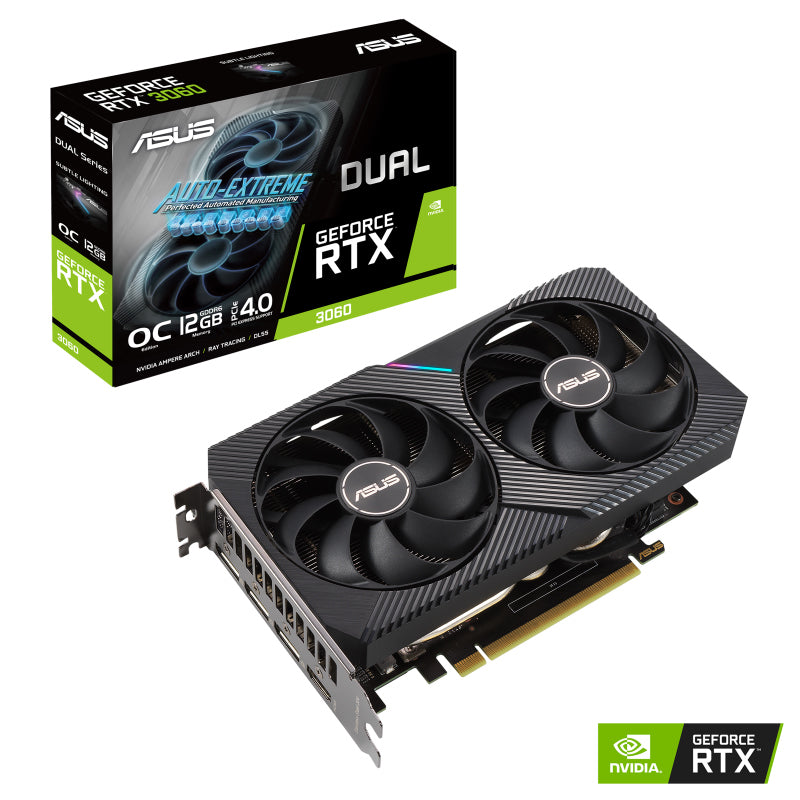

ASUS nVidia Dual GeForce RTX™ 3060 12G V2 OC Edition

•NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
•2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
•3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
•OC mode: Boost clock 1867 MHz (OC mode)/ 1837 MHz (Gaming mode)
•Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
•A 2-slot Design maximizes compatibility and cooling efficiency for superior performance in small chassis.
•0dB Technology lets you enjoy light gaming in relative silence.
•A stainless steel bracket is harder and more resistant to corrosion.

SPECIFICATIONS
Model
Dual GeForce RTX 3060 V2 OC Edition

Graphic Engine
NVIDIA® GeForce RTX™ 3060

Bus Standard
PCI Express 4.0

OpenGL
OpenGL®4.6

Video Memory
12GB GDDR6

Engine Clock
OC Mode - 1867 MHz (Boost Clock)
Gaming Mode - 1837 MHz (Boost Clock)

CUDA Core
3584

Memory Speed
15 Gbps

Memory Interface
192-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1), Yes x 3 (Native DisplayPort 1.4a), HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x Speedsetup manual
1 x Collection card

Software
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions
7.87 ' x 4.84 ' x 1.496 ' Inch
20 x 12.3 x3.8 Centimeter

Recommended PSU
650W

Power Connectors
1 x 8-pin

Slot
2 Slot

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage' feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

Warranty: 36 months
