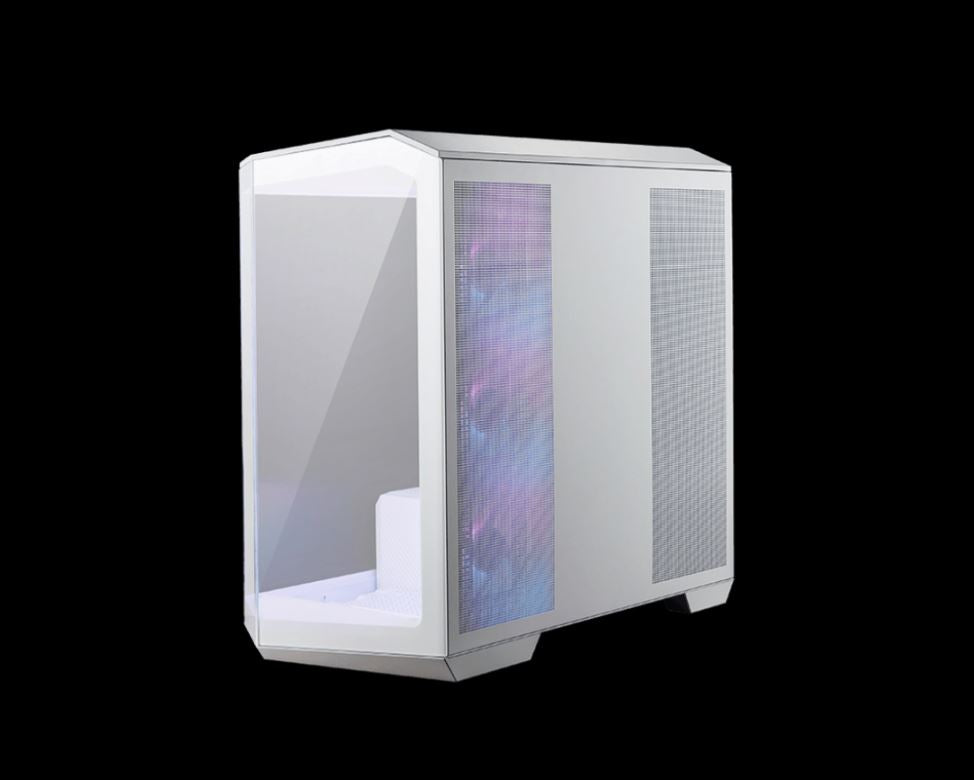

MSI MAG PANO M100R PZ WHITE Micro ATX Case, 1x USB 3.2, 2x USB 2.0, 1x Audio, 1x Mic, 4x PCI-E, 2x 2.5', 2x 3.5', Micro ATX / Mini ITX(LS)

MSI MAG PANO M100R PZ WHITE Micro ATX Case, 1x USB 3.2, 2x USB 2.0, 1x Audio, 1x Mic, 4x PCI-E, 2x 2.5', 2x 3.5', Micro ATX / Mini ITX(NEW)

Product Name
MAG PANO M100R PZ / WHITE

Case Form Factor
Micro- ATX Tower

Motherboard Form Factor Support
M-ATX(Back-connect supported) / ITX

I/O Ports
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button

Drive Mount Support
1 x 2.5'
1 x 2.5'/3.5' combo
(up to 2 x 2.5' or 1 x 2.5'+ 1 x 3.5')

Expansion Slots
5

Maximum GPU Length
390 mm / 15.35 inches
*Support horizontal installation only.

Maximum CPU Cooler Height
175 mm / 6.9 inches

Power Supply Support
ATX

Maximum PSU Length
200 mm / 7.87 inches

Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm / 1 x 140 mm
Side: 3 x 120 mm
Bottom: 1 x 120 mm
PSU Shroud: 2 x 120 mm

Pre-installed Fan Size
Side: 3 x 120 mm
Rear: 1 x 120 mm

Pre-installed Fan Type
Side: 3 x ARGB Fan (Reverse-blade)
Rear: 1 x ARGB Fan

Radiator Size Support
Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 / 140 mm
Side: NA
Bottom: NA

Dimensions (DxWxH)
440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches

Net Weight
8.66 kg

Gross Weight
11.29 kg
