Description

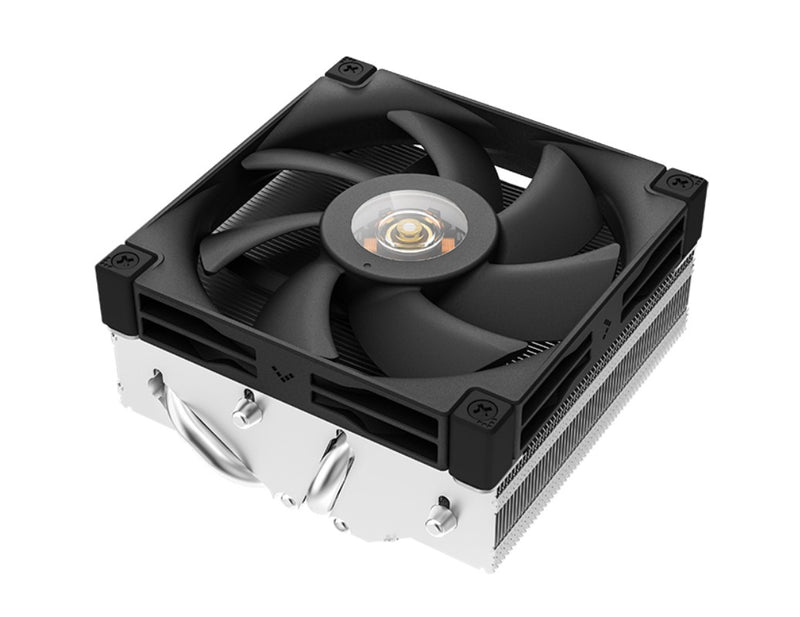

AN400The AN400 is a 4-heatpipe low-profile air cooler that provides 150W of TDP in a compact heatsink. With unobstructed clearance for RAM modules, and a top-down air flow, the AN400 is a great option for everything down to small ITX builds.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions 92×92×52.5 mm(L×W×H)
Heatsink Dimensions 94×57×38 mm(L×W×H)
Net Weight 431.4 g
Heatpipe Ø6 mm×4 pcs
Fan Dimensions 92×92×15 mm(L×W×H)
Fan Speed 500~2950 RPM±10%
Fan Airflow 31.18 CFM
Fan Air Pressure 4.8 mmAq
Fan Noise ≤23.2 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.45 A
Fan Power Consumption 5.4 W
LED Type White LED
Specifications
| Manufacturer's Code | CFD-AN400 |
|---|---|
| Product Category | Fan & Cooling Products |
