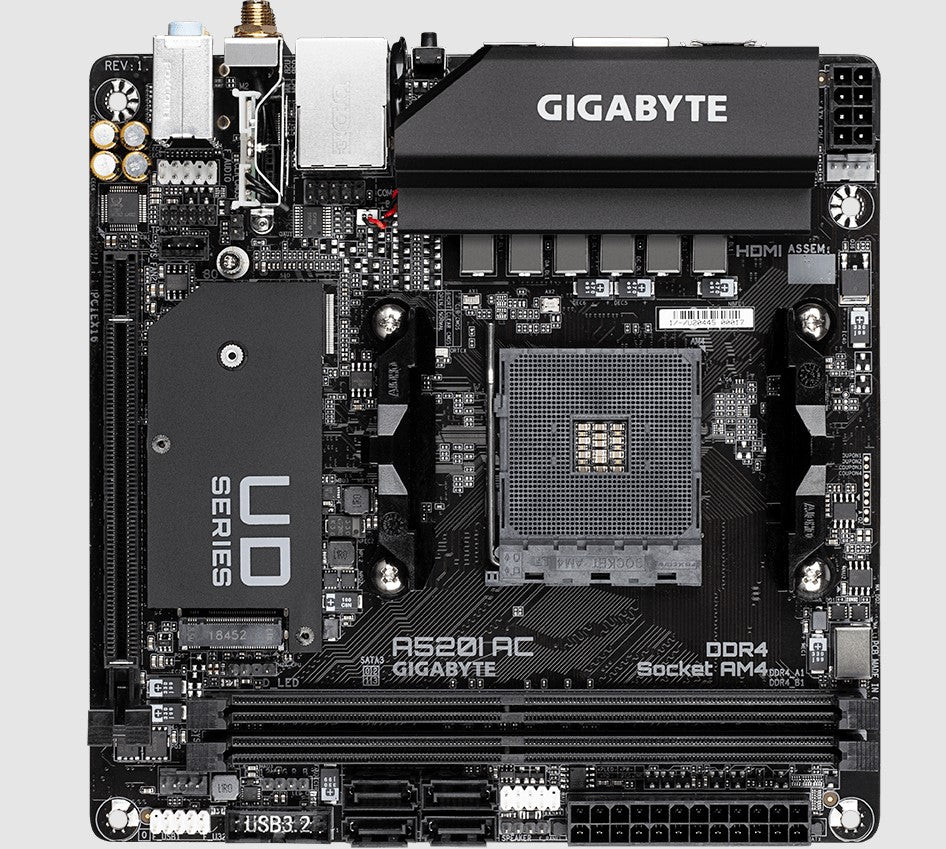

Gigabyte A520I AC AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, PCIe 3.0 x4 M.2

Gigabyte A520I AC AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

Supports 3rd Gen AMD Ryzen™ Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 6 Phases Digital VRM Solution with 55A DrMOS
Ultra-Fast NVMe PCIe 3.0 x4 M.2
Onboard Intel® Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna
GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management
DisplayPort, Dual HDMI for for Multiple Display
RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

CPU Type Socket AM4
Vendor AMD
Speed Support AM4 series
L2/L3 Cache Size Embedded in CPU
Chipset North Bridge A520
Flash ROM 256Mb x1
Super IO ITE 8688
Heatsink/Heatpipe Heatsink for main chip
Memory Socket 2 DIMM
Frequency DDR4, 3200
Type 2-CH DDR4
Serial ATA Controller Integrated in main chip
Spec SATA 6Gb/s
RAID or SCSI Controller Integrated in main chip
Spec RAID 0/1/10
Graphics Interface PCI-E 3.0 x16
Controller Integrated in CPU
VRAM size (optional) Share 16GB(Max.)
Driect X support DirectX 12
Audio Codec Realtek ALC887
Channel 7.1 channel
LAN Controller Realtek 8118
Spec GbE
USB Controller Integrated in main chip/Integrated in CPU
Spec USB 3.2 GEN1/USB 2.0
Power Management Power Connector ATX 2*12 PIN/ATX 12V 2*4 PIN
PCB Form Factor Mini-ITX
Layer 8-lay
2oz Copper PCB N/A
Size (D x W) 170x170mm
Color Dark Brown
Expansion PCI Express x1 slot N/A
PCI Express x16 slot YES, 1
M.2 Yes/ socket 1 for WIFI, 1/Yes/ socket 3 for SSD (PCIe & SATA mode), 1
Other Features AORUS N/A
Packing SATA cable YES, 2
Color Box Size mini ITX 一體成形(222x189x78mm)
WIFI Controller Intel 1x1 AC3168
