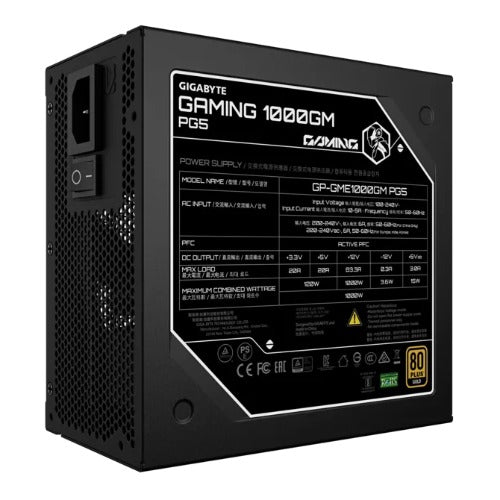

GIGABYTE GAMING 1000GM PG5 1000W 80+ Gold ATX 3.1 PSU PCIe 5.0 16pin full modular 135mm fan OVP OPP SCP UVP OCP OTP 8SATA 4PCIe 2EPS 100,000h MTBF

GIGABYTE GAMING 1000GM PG5 1000W 80+ Gold ATX 3.1 PSU PCIe 5.0 16pin full modular 135mm fan OVP OPP SCP UVP OCP OTP 8SATA 4PCIe 2EPS 100,00h MTBF

Model
GP-GME1000GM PG5

Type
Intel Form Factor ATX 12V v3.1

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)
Input Current
12-6A

Input Frequency
60-50 Hz

Output Capacity
1000W

Dimensions
150 x 150 x 86mm

Fan Type
135mm FDB Fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protections
OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP

Power Good Signal
100-150ms

Hold Up Time
>17ms (80% load)

Cable Type
Embossed, All black

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1

Warranty: 36 months
