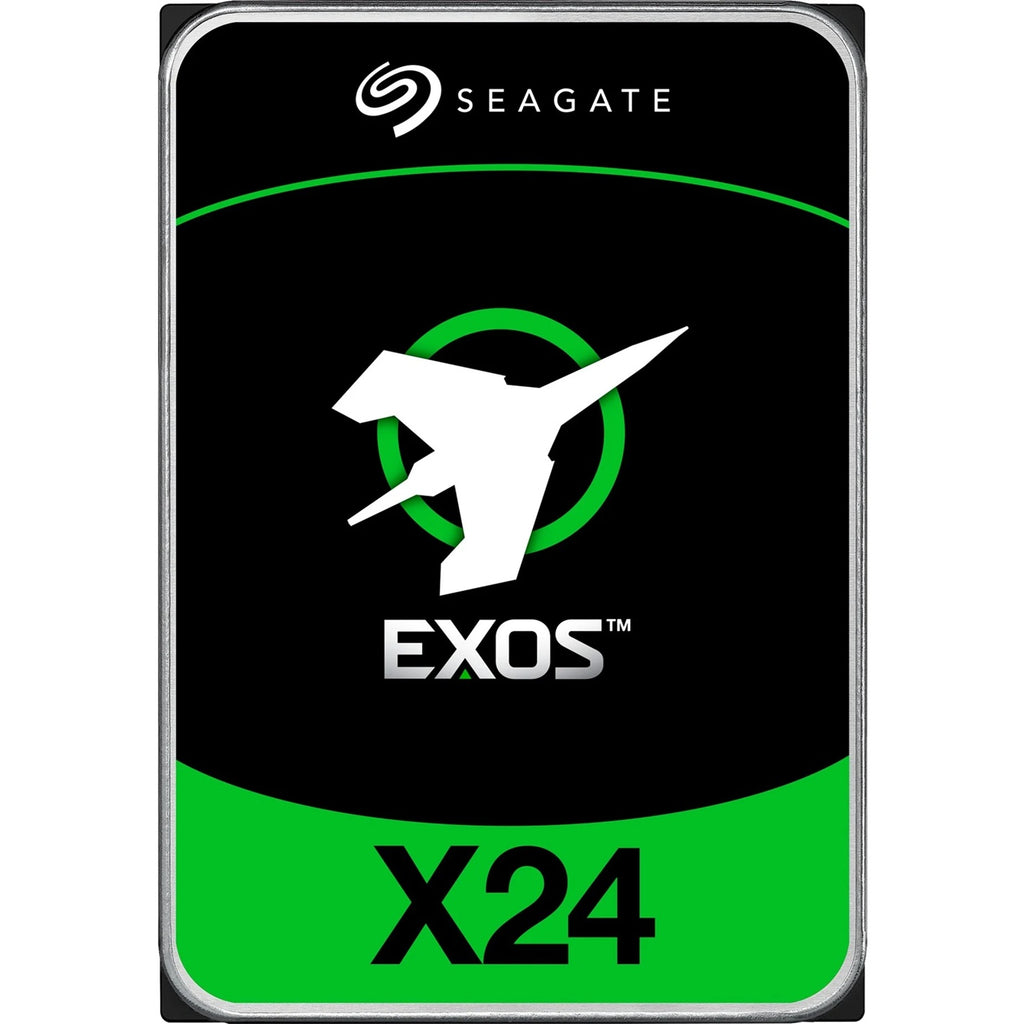

Seagate16TB 3.5' SATA EXOS X24, 512mb CACHE, Enterprise, 512E/4KN, 6GB/S, 7200RPM, 24x7 data availability HDD. 5 Years Warranty

Seagate16TB 3.5' SATA EXOS X24, 512mb CACHE, Enterprise, 512E/4KN, 6GB/S, 7200RPM, 24x7 data availability HDD. 5 Years Warranty

Powerful performance with proven technology—Seagate’s ® Exos® X24 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions—making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.

Specifications
Capacity 16TB
Standard Model - Seagate Instant Secure Erase (ISE) 1 ST16000NM002H
SED Model2 ST16000NM001H

FEATURES
Helium Sealed-Drive Design Yes
Conventional Magnetic Recording (CMR) Yes
Super Parity Yes
PowerChoice™ Idle Power Technology Yes
PowerBalance™ Power/Performance Technology Yes
Hot-Plug Support3 Yes
Cache, Multisegmented (MB) 512
RSA 3072 Firmware Verification (SD&D) Yes

RELIABILITY/DATA INTEGRITY
Mean Time Between Failures (MTBF, hours) 2500000 hrs
Reliability Rating @ Full 24×7 Operation (AFR) 0.35%
Nonrecoverable Read Errors per Bits Read <1 in 10E15
Power-On Hours per Year (24×7) 8760
512e Sector Size (Bytes per Sector) 512
4Kn Sector Size (Bytes per Sector) 4096
Limited Warranty (years) 5

PERFORMANCE
Spindle Speed (RPM) 7200RPM
Max. Sustained Transfer Rate OD (MB/s,MiB/s) 285/272
Random Read/Write 4K QD16 WCD (IOPS) 168/550
Interface Ports Single
Rotation Vibration @ 20-1500 Hz (rad/sec²) 12.5

POWER
Idle A (W) Average 6.3
Max Operating, Random Read/Write 4K/16Q (W) 8.9, 7.1
Power Supply Requirements +12V and +5V

ENVIRONMENTAL
Temperature, Operating (°C) (Ambient / Drive Reported) 5 / 60
Vibration, Nonoperating: 2 to 500Hz (Grms) 2.27
Shock, Operating 2ms (Read/Write) (Gs) 40Gs
Shock, Nonoperating 2ms (Gs) 200

PHYSICAL
Height (mm/in, max) 4 26.1mm/1.028in
Width (mm/in, max) 4 101.85mm/4.010in
Depth (mm/in, max) 4 101.85mm/4.010in
Depth (mm/in, max) 4 147mm/5.787in
Weight (gm/lb) 685g/1.51lb
Carton Unit Quantity 20
Cartons per Pallet/Cartons per Layer 40 / 8
