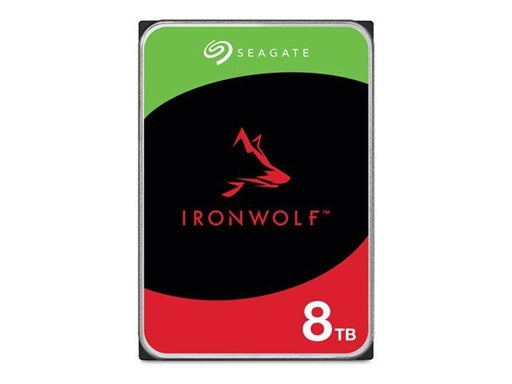

Seagate 8TB 3.5' IronWolf, SATA 6.0Gb/s, NAS 24x7, CMR, max. STR OD 202MB/s, 5400 RPM, 256MB Cache, HDD, 3Years Warranty (ST8000VN002)

Seagate 8TB 3.5' IronWolf, SATA 6.0Gb/s, CMR, max. STR OD 202MB/s, 5400 RPM, 256MB Cache, HDD (ST8000VN002)

IronWolf™ is designed for consumer and commercial NAS. Delivering Tough, Ready and Scalable 24x7 performance in multibay, networked environments.

SPECIFICATION
Capacity 8TB
Standard Model Number ST8000VN002
Interface SATA 6Gb/s

Features and Performance
Drive Bays Supported 1 – 8 Bays
Recording Technology CMR
Drive Design (Air or Helium) Air
Workload Rate Limit (WRL) 180
Rotational Vibration (RV) Sensor Yes
Dual-Plane Balance Yes
Error Recovery Control Yes
Max. Sustained Transfer Rate OD (MB/s) 202MB/s
Spindle Speed (RPM) 5,400
Cache (MB) 256

Reliability

Load/Unload Cycles 600,000
Non-recoverable Read Errors Rate, Max 1 per 10E14
Power-on Hours 8,760
Mean Time Between Failures (MTBF, hours) 1,000,000
Rescue Data Recovery Services (years)4 3
Warranty, Limited (years) 3

Power Management
Startup Current, Typical (12V, A) 1.8
Average Operating Power 5.3
Idle Power Average (W) 4 W
Standby Mode/Sleep Mode, Typical (W) 0.25/0.25
Voltage Tolerance, Inc. Noise (5V / 12V) ±5% / ±10%

Environmental/Temperature
Operating Temperature (ambient, min °C) 0
Operating Temperature (drive reported, max °C)5 65
Nonoperating Temperature (ambient, min / max °C) -40 / 70

Environmental/Shock
Shock, Operating/Non-operating: 2 ms (max) 80 Gs/300 Gs

Environmental/Acoustics
Acoustics, Idle (typical, measured in Idle 1 state) (dBA) 25
Acoustics, Seek (typical) (dBA) 26

Physical

Height (mm/in) 26. 11 mm/1.028 in
Width (mm/in, max) 26.11 mm/1.028 in
Depth (mm/in, max) 146.99 mm/5.787 in
Weight (g/lb, typical) 630 g/1.389 lb
Carton Unit Quantity 20
Cartons per Pallet / Cartons per Layer 40/8
