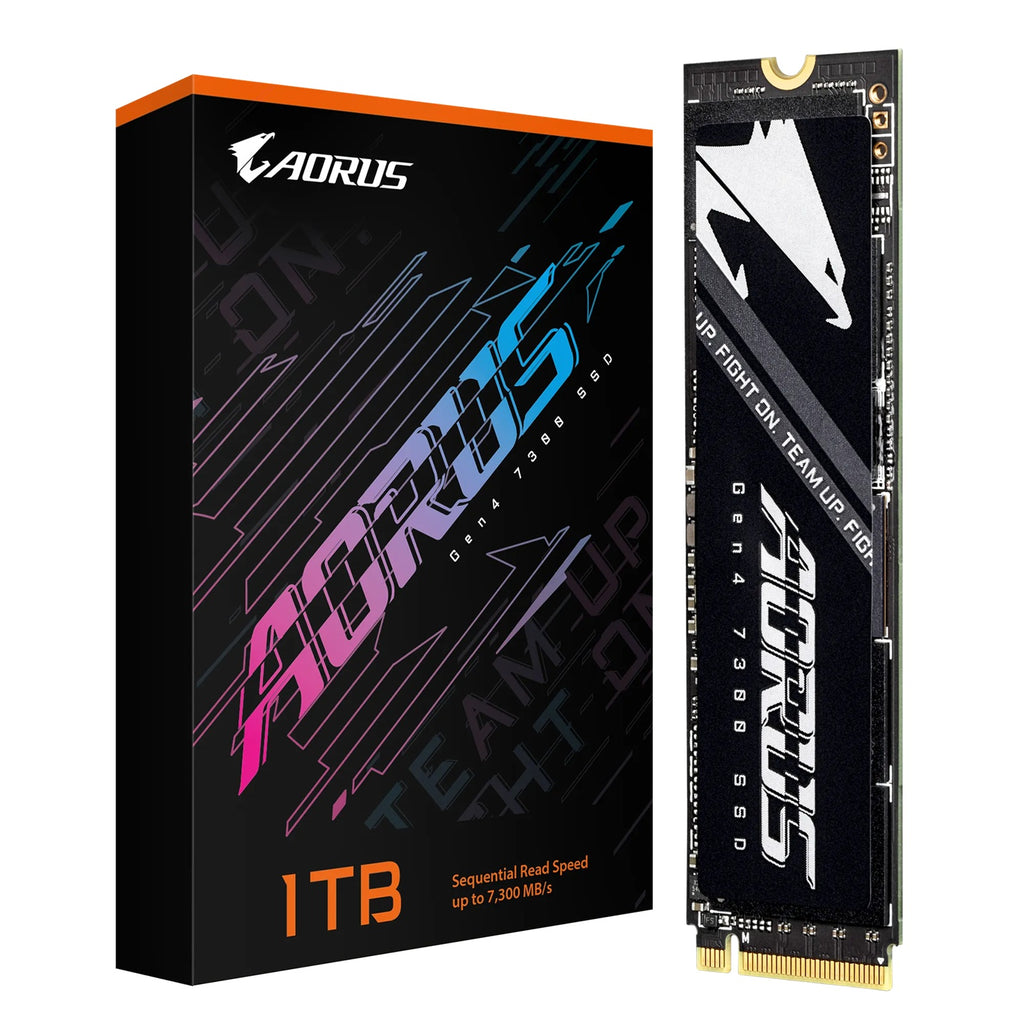

Gigabyte AORUS Gen4 7300 SSD 1TB (w/o heat spreader), PCIe 4.0 x4, M.2 2280, 3D TLC NAND, DDR4 1GB cache, up to 7300MB/s read & 6000MB/s write

Gigabyte AORUS Gen4 7300 SSD 1TB (w/o heat spreader), PCIe 4.0 x4, M.2 2280, 3D TLC NAND, DDR4 1GB cache, up to 7300MB/s read & 6000MB/s write

Key Features

Form Factor: M.2 2280
Interface: PCI-Express 4.0 x4, NVMe 1.4
Total Capacity: 1000GB*
Sequential Read Speed : up to 7300 MB/s**
Sequential Write speed : up to 6000 MB/s**
Wear Leveling, Over-Provision technologies
TRIM & S.M.A.R.T supported
AES-256 Supported
Warranty: Limited 5-years

Specification

Interface PCI-Express 4.0 x4, NVMe 1.4

Form Factor M.2 2280

Total Capacity 1000GB

NAND 3D TLC NAND Flash

External DDR Cache DDR4 1GB

Sequential Read speed Up to 7300 MB/s

Sequential Write speed Up to 6000 MB/s

Dimension 80 x 22 x 2.3 mm (Single Side)

Mean time between failure (MTBF) 1.6 million hours

Power Consumption (Active) Average: R : 6.6W, W : 6.7W

Power Consumption(Idle)(ASPT on) <30mW

Temperature (Operating) 0°C to 70°C

Temperature (Storage) -40°C to 85°C

Warranty
1. Limited 5-years or 700TBW.
2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the 'Percentage Used' (SMART ID: 05) in SMART page of 'GIGABYTE SSD toolbox' reaches 100 means out of warranty. (A new unused product will show the number of 0)

Test Configuration
OS: Windows 11 22H2 (OS build 22621.819)
CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G
Memory: DDR5 5600 16GBx2
Chipset: AM5 X670 (X670E AORUS MASTER)
