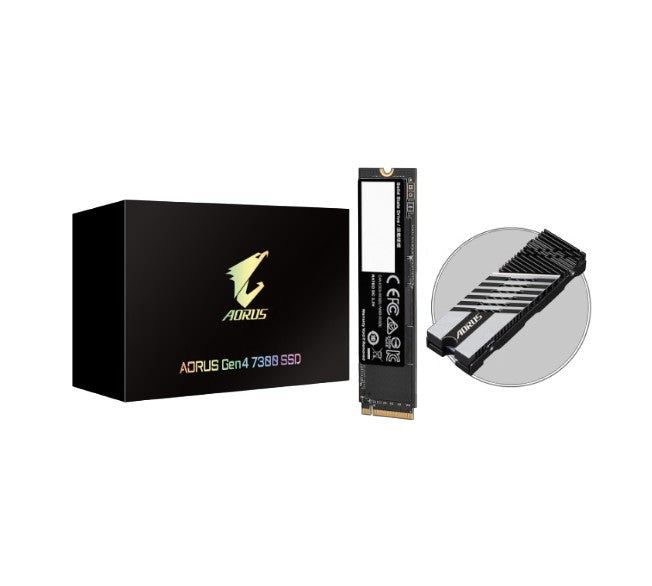

Gigabyte AORUS Gen4 7300 M2 SSD 2TB PCI-Express 4.0 x4, NVMe 1.4, Sequential Read ~7300 MB/s, Sequential Write ~6850 MB/s

Gigabyte AORUS Gen4 7300 M2 SSD 2TB PCI-Express 4.0 x4, NVMe 1.4, Sequential Read ~7300 MB/s, Sequential Write ~6850 MB/s

Specification

Interface
PCI-Express 4.0 x4, NVMe 1.4

Form Factor
M.2 2280

Total Capacity
2000GB

NAND
3D TLC NAND Flash

External DDR Cache
DDR4 2GB

Sequential Read speed
Up to 7300 MB/s

Sequential Write speed
Up to 6850 MB/s

Dimension
SSD without Heatsink: 80 x 22 x 3.5 mm (Double Side)
SSD with Heatsink: 80.5 x 23.5 x 11.25 mm

Mean time between failure (MTBF)
1.6 million hours

Max. Operating Power
Read: 8.1W
Write: 7.4W

Power Consumption (Idle, PS3)
30mW

Power Consumption(PS4, L1.2)
3mW

Temperature (Operating)
0°C to 70°C

Temperature (Storage)
-40°C to 85°C

Warranty
1. Limited 5-years or 1400TBW.
2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the 'Percentage Used' (SMART ID: 05) in SMART page of 'GIGABYTE SSD toolbox' reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.

Test Configuration
OS: Windows 11 22H2 (OS build 22621.819)
CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G
Memory: DDR5 5600 16GBx2
Chipset: AM5 X670 (X670E AORUS MASTER)
