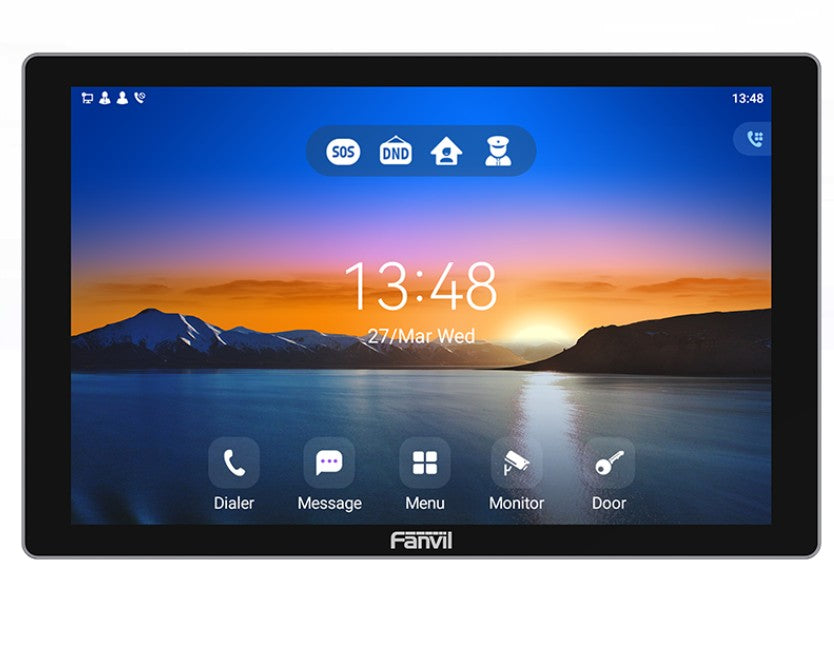

Fanvil i507W Android Indoor Station
The Fanvil i507W is a powerful and stylish 10.1-inch indoor station designed for modern smart buildings, residential communities, villas, and hotels. With its Android 9.0 operating system and intuitive touch interface, it offers seamless integration with third-party applications and security systems, delivering a safe, connected, and convenient user experience.
Key Features:
- 10.1-inch color IPS capacitive touchscreen (1280×800 resolution)
- Built-in 2W speaker with Acoustic Echo Cancellation (AEC) for high-quality two-way hands-free communication
- Real-time video monitoring from third-party IP cameras and door phones
- Rich I/O interfaces for integrating alarm sensors, doorbells, and automation systems
- Supports PoE (802.3af) or 12V DC power supply
- Android 9.0 OS for stable performance and support for third-party app installation
Specifications:
- Panel Type: Suitable for community, hotel, and villa environments
- Body Material: ABS
- Wi-Fi: Dual-band 2.4G/5G
- Interfaces: 8×Alarm input, 1×Short circuit output, 1×Doorbell input, 1×RS485 (reserved)
- Network: 10/100 Mbps adaptive Ethernet
- Power Consumption: PoE: 2.99~8.64W, Adapter: 2.64~7.18W
- Operating Temperature: -10℃ to 50℃
- Storage Temperature: -40℃ to 80℃
- Humidity: 10%~90%
- Dimensions: 247.96 x 156.96 x 25.6 mm
- Installation: Wall-mounted
Functional Capabilities:
- Protocols: SIP 2.0 over UDP/TCP/TLS
- Audio Codecs: G.711A/U, G.729AB, iLBC, G.722, OPUS
- Video Codecs: H.264, H.265 (optional)
- Video Resolution: QVGA, CIF, VGA, 4CIF, 720P, 1080P
- DTMF: In-band, RFC2833, SIP Info
- Do Not Disturb (DND): Supported with user-defined timing
- Additional Features: Remote door unlocking, message sending/receiving, customizable ringtones, third-party app support
