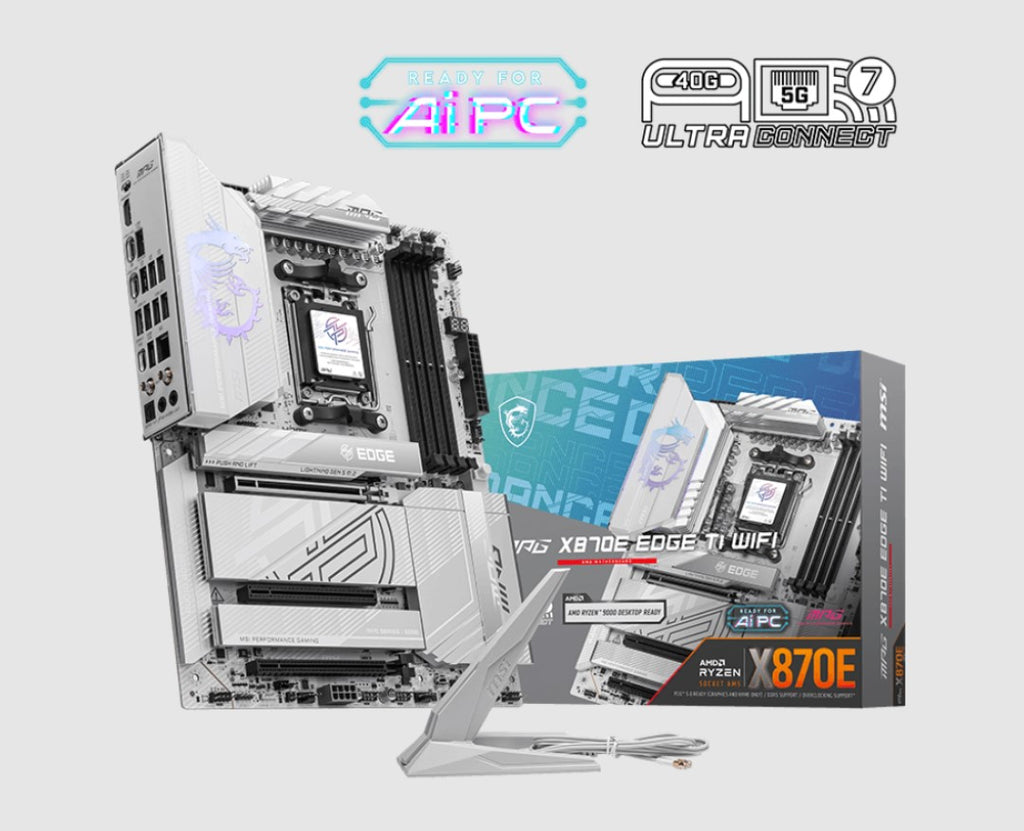

MSI MPG X870EEDGE TI WIFI, AMD AM5 ATX Motherboard 4x DDR5~256GB, 3x PCIe x16, 4x M.2, 8x USB 2.0, 4x USB-C

MSI MPG X870EEDGE TI WIFI, AMD AM5 ATX Motherboard 4x DDR5~256GB, 3x PCIe x16, 4x M.2, 8x USB 2.0, 4x USB-C

Chipset
AMD X870E

CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics
1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*

Slot
3x PCI-E x16 slot

Audio
Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio

Storage
4x M.2

RAID
•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and Raid 10* for M.2 NVMe storage devices
* RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen™ 9000/7000 series CPU.

LAN
1x Realtek® 8126 5G LAN

WIRELESS LAN & BLUETOOTH
Wi-Fi 7 Solution
Supports Bluetooth® 5.4**, MLO, 4KQAM

LED FEATURE
4x EZ Debug LED
1x EZ Digit Debug LED

OPERATING SYSTEM
Support for Windows® 11 64-bit

PCB Info
ATX
243.84mmx304.8mm
