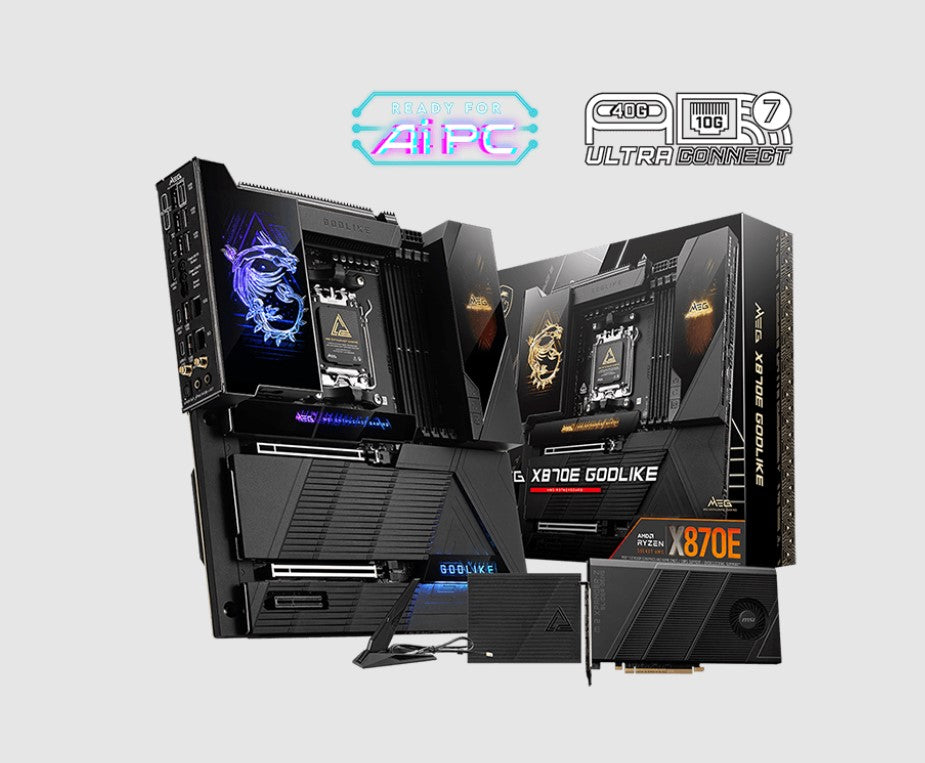

MSI MEG X870E GODLIKE, AMD X870E Socket AM5 Motherboard 4x DDR5~256GB, 2x PCIe x16, 7x M.2, 4x USB 2.0, 9x USB-C

MSI MEG X870E GODLIKE, AMD X870E Socket AM5 Motherboard 4x DDR5~256GB, 2x PCIe x16, 7x M.2, 4x USB 2.0, 9x USB-C

Chipset
AMD X870E

CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*

Slot
2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio
Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio

Storage
7x M.2

RAID
•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices

USB
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
5x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)

LAN
1x Marvell® AQC113CS 10Gbps LAN
1x Realtek® 8126 5Gbps LAN

WIRELESS LAN & BLUETOOTH
Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot

OPERATING SYSTEM
Support for Windows® 11 64-bit

PCB Info
ATX
304.8mmx277mm
