MSI B850M GAMING WIFI, AMD AM5, B850, DDR5 8200+ MT/s, PCIe 5.0 x16, M.2 Gen5, 5G LAN, Wi-Fi 7, Bluetooth 5.4, USB-C, 7.1 Audio

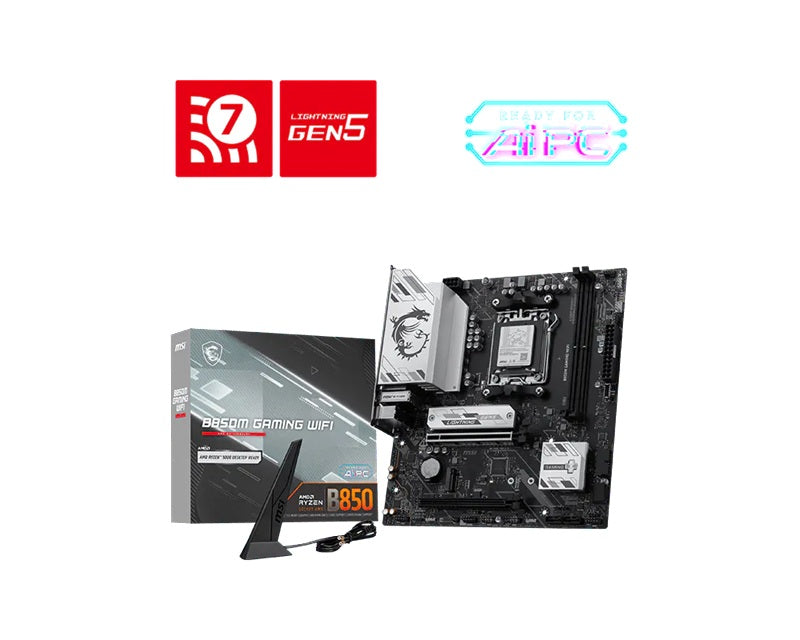

MSI BB850M GAMING WIFI

The B850M GAMING WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the advanced Wi-Fi 7, 5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

•Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
•Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
•Ultra Performance: Direct 7+2+1 P-PAK Power System, 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
•Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
•High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
•Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
•EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
•Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

SPECIFICATION
Model Name B850M GAMING WIFI
CPU Support Supports AMD RyzenTM 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket AMD Socket AM5
Chipset AMD B850 Chipset

Expansion slots
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x4 slot

Display Interface
Support 4K@60Hz as specified in HDMITM 2.1,
DisplayPort 1.4 – Requires Processor Graphics

Memory Support 2 DIMMs, Dual Channel DDR5 - 8200+ MT/s (OC)

Storage
1 x M.2 Gen5 x4 128Gbps slot,
1 x M.2 Gen4 x4 64Gbps slot,
4 x SATA 6Gbps ports

USB ports
1 x USB 10Gbps (1 Type-C)
6 x USB 5Gbps (5 Type-A + 1 Type-C)
6 x USB 2.0

LAN Realtek® 8126-VB 5G LAN
Wireless / BT Wi-Fi 7 module, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost

Warranty: 36 months
