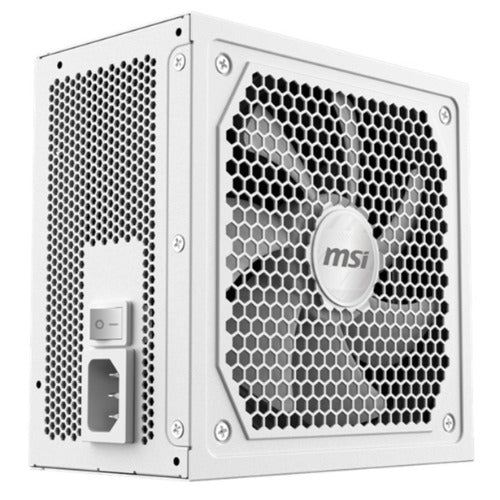

MSI MAG A1000GL PCIE5 ATX Power Supply Uni - White, 1000W, 80+ Gold, Fully Modular, PCIe5 600W, 135mm FDB Fan, Active PFC, 100-240V, 10yr wty, OCP/UVP

MSI MAG A1000GL PCIE5 ATX Power Supply Uni - White, 1000W, 80+ Gold, Fully Modular, PCIe5 600W, 135mm FDB Fan, Active PFC, 100-240V, 10yr wty, OCP/UVP

The MAG A1000GL PCIE5 WHITE power supply provides 80 PLUS Gold-certified power efficiency, ATX 3.1 ready, and PCIe 5.1 GPU support, cooled by a 135 mm fluid dynamic bearing (FDB) fan for superior performance. Outfitted with a half-bridge LLC DC-to-DC topology, an extra-compact ATX frame, and a fully modular design, this PSU is ideal for spatially-efficient PCs requiring robust, no-nonsense performance.

SPECIFICATIONS:
Efficiency Rating
80 PLUS Gold (up to 90%)

Modular
Yes (fully modular)

Fan Size
135 mm

Fan Bearing
Fluid Dynamic Bearing

Dimensions (DxWxH)
150 x 150 x 86 mm

PFC Type
Active PFC

Input Voltage Range
100-240V~

Power Watt
1000W

Power Excursion
2000W (*up to 200% of the PSU's rated power for 100μs)

Input Frequency Range
50-60Hz

Protection
OCP / OVP / OPP / OTP / SCP / UVP

ATX (24 pin)
1

EPS (4+4 pin)
2

PCI-E 5.1 (16 pin)
1 (600W)

PCI-E (6+2 pin)
4

SATA (15 pin)
12

PERIPHERAL (4 pin)
4

FDD (4 pin)
1

Warranty: 120 months
