Description

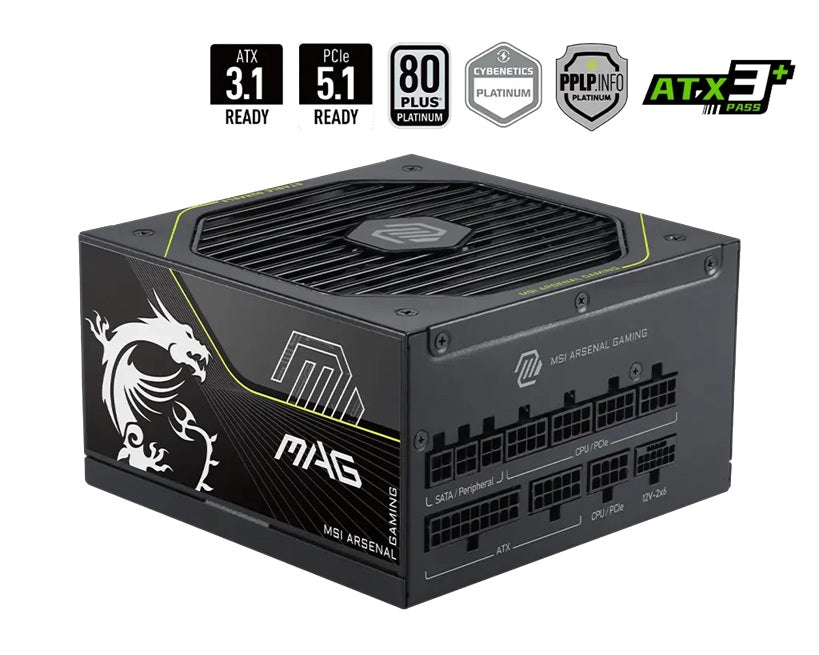

MSI MAG A1000PLS PCIE5, 1000W, 80 PLUS Platinum
MAG A1000PLS PCIE5
•Premium protection, GPU Safeguard and Fan Safeguard
•Supports Nvidia® GeForce RTXTM 50 series graphics cards
•Native 12V-2x6 connector
•Dual-color 12V-2x6 cable
•80 PLUS Platinum certified
•Optimized the sound level
•Main 105oC capacitor
•Embossed Jacket Cables, the cables are more bending and routing
•Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
SPECIFICATION
Efficiency Rating 80 PLUS PLATINUM
Power Watt 1000W
Modular Fully Modular
Form Factor ATX
Dimensions (DxWxH) 150x150x86 mm
PFC Type Active PFC
Input Voltage Range 100~240 VAC
Input Frequency Range 50~60 Hz
Fan
Size: 135mm
Bearing: FDB
Protection OVP / OCP / OTP / OPP / SCP / UVP / SIP / NLO
Connector
1 x Motherboard (24 pin)
1 x CPU (4+4 pin)
1 x CPU (8 pin)
1 x PCIe 5 (12+4 pin) / 600W
4 x PCIe (6+2 pin)
6 x SATA
3 x Peripheral (4 pin)
Warranty: 12 months
