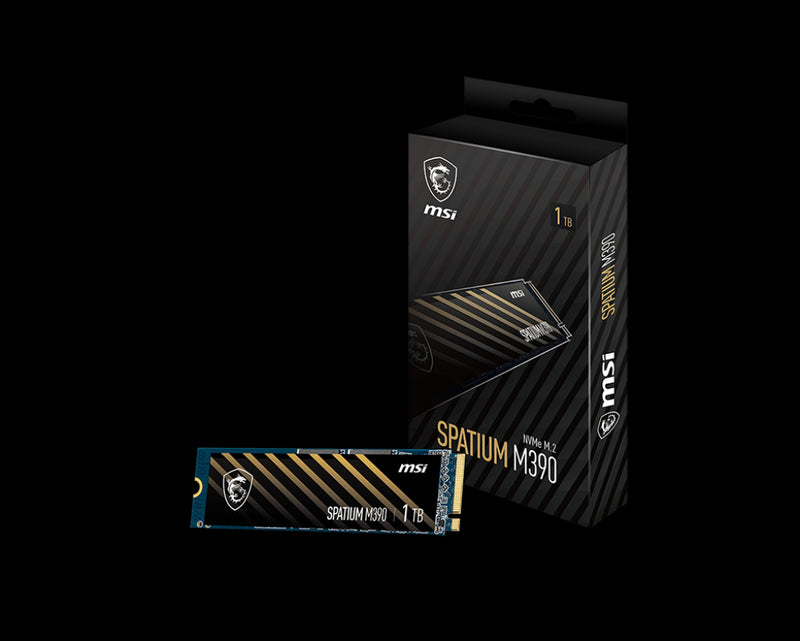

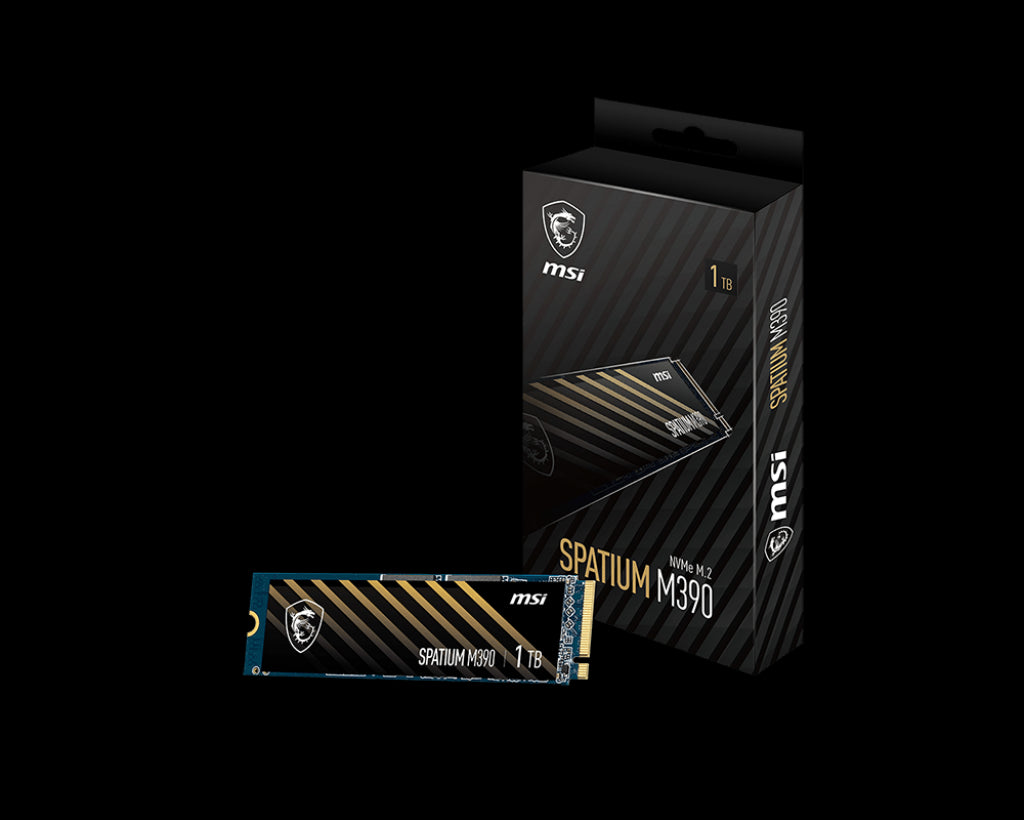

MSI SPATIUM M390 NVMe M.2 SSD 1TB, 3300 MB/s Read, 3000 MB/s Write, PCI-E 3.0, 400 TBW, 5 Year Warranty

MSI SPATIUM M390 NVMe M.2 SSD 1TB, 3300 MB/s Read, 3000 MB/s Write, PCI-E 3.0, 400 TBW, 5 Year Warranty

SPATIUM M390 NVMe M.2
PCIe Gen3x4 interface and complies with the NVMe 1.4 standard
Sequential Read speeds up to 3300MB/s and Write speeds up to 3000MB/s
Up to 1200 TBW
Built-in data security and error-correction capabilities
250GB to 2TB capacities in M.2 2280 form factor
Suitable for both desktop and notebook
5-Year Warranty

Model Name SPATIUM M390 NVMe M.2
Capacity 1TB
Controller PHISON E15T
Flash Memory 3D NAND
Form Factor M.2 2280
Interface PCIe Gen3x4, NVMe 1.4
Compatibility PCIe Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) 3300
Sequential Write up to (MB/s) 3000
Random Read 4KB up to (IOPS) 420K
Random Write 4KB up to (IOPS) 550K
Maximum Operating Power (W) 4.0
Idle Power PS3 (mW) 30
Low Power L1.2 (mW) 5
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 400
Mean Time Between Failure
(MTBF) Up to 1,500,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum
TBW as stated, whichever comes first.
Advanced Features
TRIM (Performance Optimization, OS
support required)
SMART (Self-Monitoring, Analysis and
Reporting Technology)
LDPC (Low Density Parity Check) ECC
Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption,
Data Security)
