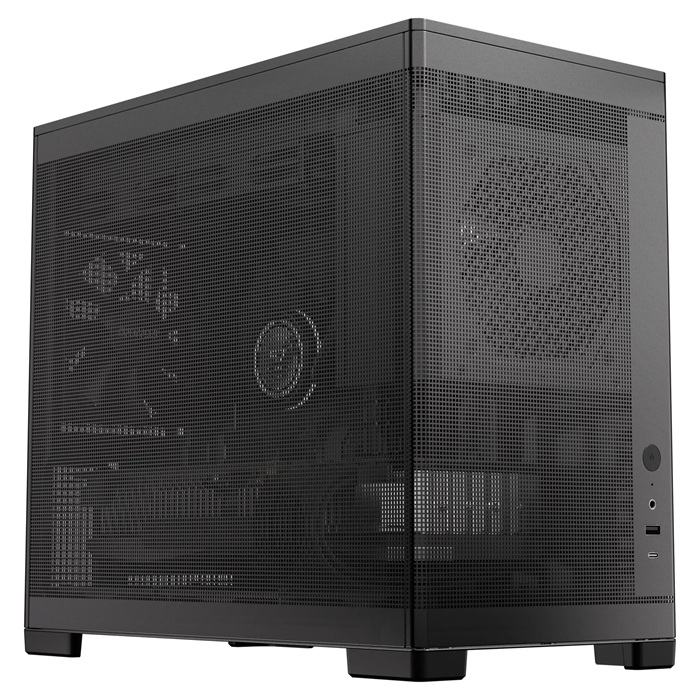

OKINOS Mini Art 4 - Black, Mini Tower, Micro-ATX/ITX, Mesh Panels, USB-C 10Gbps, 3 Fans, 240mm Radiator, 330mm GPU Clearance

OKINOS Mini Art 4 - Black, Mini Tower, Micro-ATX/ITX, Mesh Panels, USB-C 10Gbps, 3 Fans, 240mm Radiator, 330mm GPU Clearance

Special Features
•Compact 24.5L Chassis with Full Mesh and Walnut Badge Accent – Combines refined craftsmanship with excellent airflow and flexible component layout in a sleek, space-efficient design.
•Vertical Airflow Design – Promotes smooth upward airflow to effectively dissipate heat from key components, ensuring stable and long-lasting system performance.
•Tool-Free Top and Side Panels – 1.2mm fine mesh panels provide excellent ventilation while keeping dust out, and can be easily removed for quick access.
•Front I/O with Type-C 3.2 Gen 2 (10Gbps) Port – Convenient high-speed connectivity right at your fingertips.
•Supports 240mm Top Radiator – Accommodates high-performance liquid cooling for enhanced thermal management.
•Optimized Cable Management – Up to 25mm clearance at the front and 8mm behind the motherboard tray allows tidy cable routing for a clean, organized build.
•High-Spec 10A Extension Cable – Ensures stable power delivery while providing flexible reach for front-panel connections.
•Full-Size Dust Filters – Top and bottom filters keep dust out while maintaining excellent airflow, enhancing overall system durability.

SPECIFIFACTION
Model Minimal Art 4
Model Number OKICC-MINIMALART4-MATXB
Dimensions 395 x 200 x 343 (DWH)
Form Factor Mini Tower
Materials Steel + Plastic +Wood
Mainboard Support Micro-ATX , ITX
Front Access & Controls Power, USB3.0 x 1, Type-C 3.2 Gen 2 (10Gbps)x 1, Headphone/Mic Combo Jack
Side Panel Mesh

Drive Bays
Expansion Slots 4
3.5' / 2.5' 1 / 1
2.5' 1

Fan Support
Top 2 x 120mm
Bottom 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 2 x 120mm H12R 3 Pin Reverse Fans at the bottom + 1 x 120mm H12 3 Pin Fan at the rear

Radiator Support
Top 240/120mm
Rear 120mm

Clearance
Max GPU Length ≤330mm (Power Supply ≤ 140mm)

≤280mm (Power Supply > 140mm)'
Max CPU Cooler Height ≤165mm
Max PSU Length (Without Cable) ≤150mm

Miscellaneous
Dust Filter Top / Bottom
Net Weight 4.04Kg
Gross Weight 4.99 Kg

Warranty: 12 months
