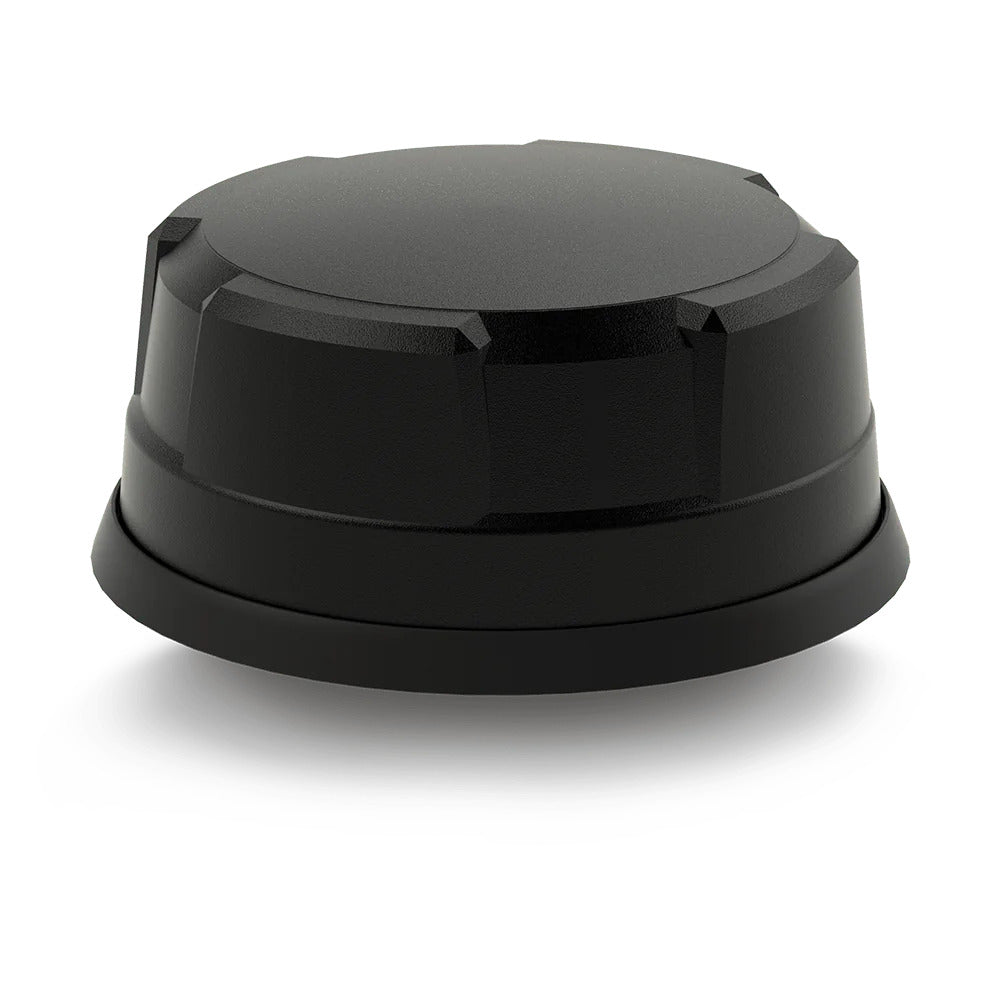

PANORAMA LGMHM4B-6-60-24-58 4×4 MiMo 4G/5G, up to 6×6 MiMo WiFi + GPS/GNSS Vehicle Antenna

PANORAMA L[G]M[H]M4[B]-6-60[-24-58] | 4×4 MiMo 4G/5G, up to 6×6 MiMo WiFi + GPS/GNSS Vehicle Antenna

The MAKO® 5G Dome is a range of high-performance 4×4 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2×2, 3×3 or 4×4, or 6×6 MiMo/Diversity at 2.4/5.0/7.2GHz. The MAKO® 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
Designed for latest generation LTE Cat 18/20 routers and devices
Low profile antenna with up to 11 functions in 1
4×4 MiMo 4G/5G LTE cellular, Optional GPS/GNSS & optional MiMo 2.4/7.2GHz in one housing
Kits with extension cables available for a range of LTE routers
Flame retardant cables compliant to UNECE R118
Pre-terminated antenna connectors fitted as standard

Pattern Omnidirectional
Max Input Power(W) 10
Frequency Range | Gain 617 – 960MHz | 4dBi; 1710 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi
Cellular LTE Elements 4 x 4 MIMO
WIFI Elements No; 2 x 2 MIMO; 4 x 4 MIMO; 6 x 6 MIMO; 5 x 5 MIMO; 3 x 3 MIMO
UHF Elements No
GPS DATA
GPS Frequency Range 1562-1612MHz
LNA GAIN (dB) 26
Number of GPS Elements 1 Module; No
MECHANICAL DATA
Colour Black; White
Height 80 (mm) | 3.15 (in)
Diameter 180 (mm) | 7.09 (in)
Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable length – GPS min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable Length – WIFI min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
