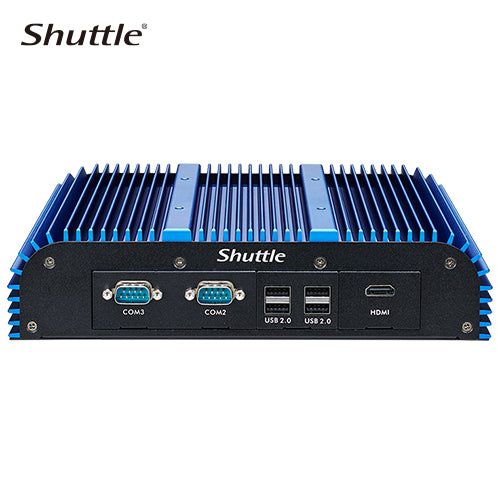

Shuttle BPCAL02 Box PC, Intel i7-1255U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount

Shuttle BPCEL02 Box PC, Intel i7-1255U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount Shuttle’s BPCAL02 and BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads. These computers support dual-channel DDR5-4800 memory, enhance caching, and ensure data security. Powered by i5/i7 processors and Intel® Iris Xe graphics, they accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more. Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments. Additionally, the BPCAL03 is capable of operating in a wide temperature range (-20°C to +60°C). Processor 12th Gen. Intel® Alder Lake Core i3-1215UE (default) Optional: i5-1235U, i5-1245UE, i7-1255U, i7-1265UE, Celeron® 7305E Memory 2 x 262 pin SO-DIMM up to 64GB Dual Channel DDR5 4800 MHz BIOS AMI UEFI 64 Mbit Graphics Display Interface 2 x HDMI 2.0b: 4096 x 2160@60Hz Display output max: 4 independent or clone Storage Audio Audio Codec Realtek ALC888s-VD 2-channel Network Ethernet 2 x Intel® 2.5G LAN WLAN Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option) Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option) External antenna (Dipole) x2 (Option) I/O Interface LAN 2 x RJ-45 (10/100/1000Mbps/2.5GbE) Supports Wake On LAN Serial Ports 1 x RS-232 (DB-9) 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) &12V (with specific optional board) USB 4 x USB3.2 Gen 2 (Type A) 4 x USB2.0 Audio 1 x Line-out 1 x Mic-in Power Type 1. 19V (without wide range board) 2. With wide range board, MB support 9-36V DC-in Adapter BPCAL02: 19V/4.74A 90W external adapter BPCAL03: 19V/7.89A 150W external adapter Watchdog Timer OS Support Windows 10 / 11 IoT 64bit Linux 64bit Mechanism Mounting VESA Mount 75 x 75 mm Ear Mount 256 x 100 mm Din Rail Mount 35 mm Dimension (WxHxD) 245 x 57 x 169mm Weight 2.85 kg Operating Temperature BPCAL02: 0 ~ 40°C BPCAL03: -20 ~ 60°C Storage Temperature -20°C ~ 80°C Relative Humidity 20% - 80% RH (non-condensing) EMC CE, FCC, VCCI, BSMI, RCM Safety cTUVus, CB, CEC, BSMI
