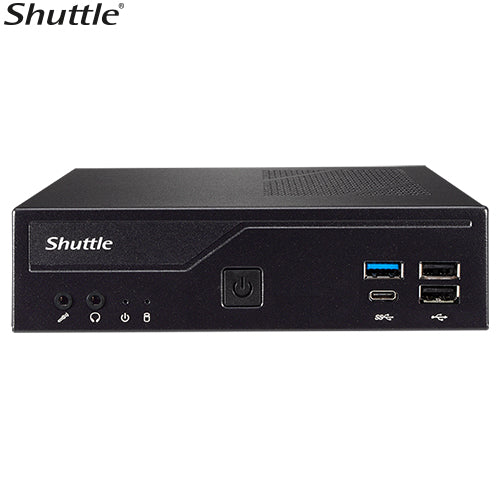

Shuttle DH610 Slim Mini PC 1L Barebone - Intel 12th/13th/14th Gen , 2xDDR4, 2.5' HDD/SSD bay, 2xLAN (1G & 2.5G), 2xRS232, HDMI, 2xDP, 120W, Vesa

The Shuttle DH610, a 1-liter Slim model, effortlessly accommodates 14th Gen Intel® Core™ Desktop and 13th/12th Gen processors via the LGA1700 socket. Featuring Intel®'s hybrid architecture design, dual-channel DDR4-3200 memory (Max. 64GB), and integrated UHD Graphics 700 series, this model delivers reliable performance suitable for office use, digital signage, kiosks, and other multi-platform AI deployments. Moreover, the DH610 supports up to three displays via one HDMI 2.0b and two DisplayPort interfaces and provides comprehensive connectivity, enhancing productivity and flexibility!

- Support Intel 12/13/14th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
- Supports up to 64GB DDR4-3200 memory
- Supports three independent displays via one HDMI 2.0b and two DisplayPort
- Flexible connectivity: one M.2 2280 M Key (PCIe 4.0 x4/SATA), one M.2 2230 E
- USB 3.2 Gen1(Including one Type-C), four USB 2.0, and two RS232
- Intel® 2.5GbE + Intel® 1GbE LAN that supports Wake On Lan and Teaming Mode

CPU
Support Intel 12/13/14th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor

Chipset
Intel® H610

Video Engine Processor
Intel® UHD Graphics series

Memory
2 x DDR4 3200/2933/2666 MHz, Max. 64GB

Storage
1 x 2.5'' HDD/SSD (max. 12.5 mm) 1 x SD card

Expansion Slots
1 x M.2 2280, M Key 1 x M.2 2230, E Key

Video Output
1x HDMI Port
2x DisplayPort
1x VGA Port (Optional)
2x USB 3.2 Gen1/Gen2 (Front)
2x USB 2.0 (Front)
2x USB 3.2 Gen1/Gen2 (Rear)
2x USB 2.0 (Rear)
1x COM Port
1 x RS232/422/485, Support 5V/12V'
1x Line out/Mic in

Network LAN
1 x Intel® 1G LAN
1 x Intel® 2.5G LAN'

Wifi
Optional

VESA
Bracket included
