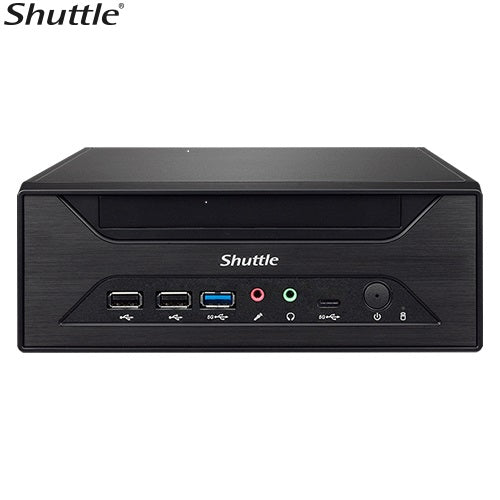

Shuttle XH610G2 Intel ® 14th/13th/12th Gen LGA1700 socket, DDR5, 5L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot, PCIe x 1 slot, 2x M.2 2280

Shuttle XH610G2 Intel ® 14th/13th/12th Gen LGA1700 socket, DDR5, 5L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot, PCIe x 1 slot, 2x M.2 2280, (VGA & RS232 both optional), 180W The XH610 and XH610V compact 3-liter slim pc feature robust performance and can be customized to drive highly interactive kiosks, vending machines, digital signage, and surveillance applications. Equipped with Intel® H610 chipset, it supports Intel® 13th/ 12th LGA1700 65W processors and delivers 4K UHD video content. In terms of extra I/O capabilities, the series features HDMI 2.0b, DisplayPort, VGA, USB 3.2 Gen 1, USB 2.0, RS232, M.2, and 2.5 Gigabit LAN. Furthermore, its slim metal chassis is VESA mount compliant, allowing 24/7 operation even in 50⁰C environments. Form Factor Mini-ITX MB 3.5 L chassis Chipset Intel H610 Express chipset Memory 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 3200 MHz Video Output HDMI + Display + D-Sub (VGA) port triple display Audio Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio Expansion Slot (1) M.2 2280 Type M key socket (1) M.2 2230 Type E Key socket Ethernet (1)Intel GbE Lan / (1)Intel 2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function Storage Interface SATA 6.0Gb/s interface
