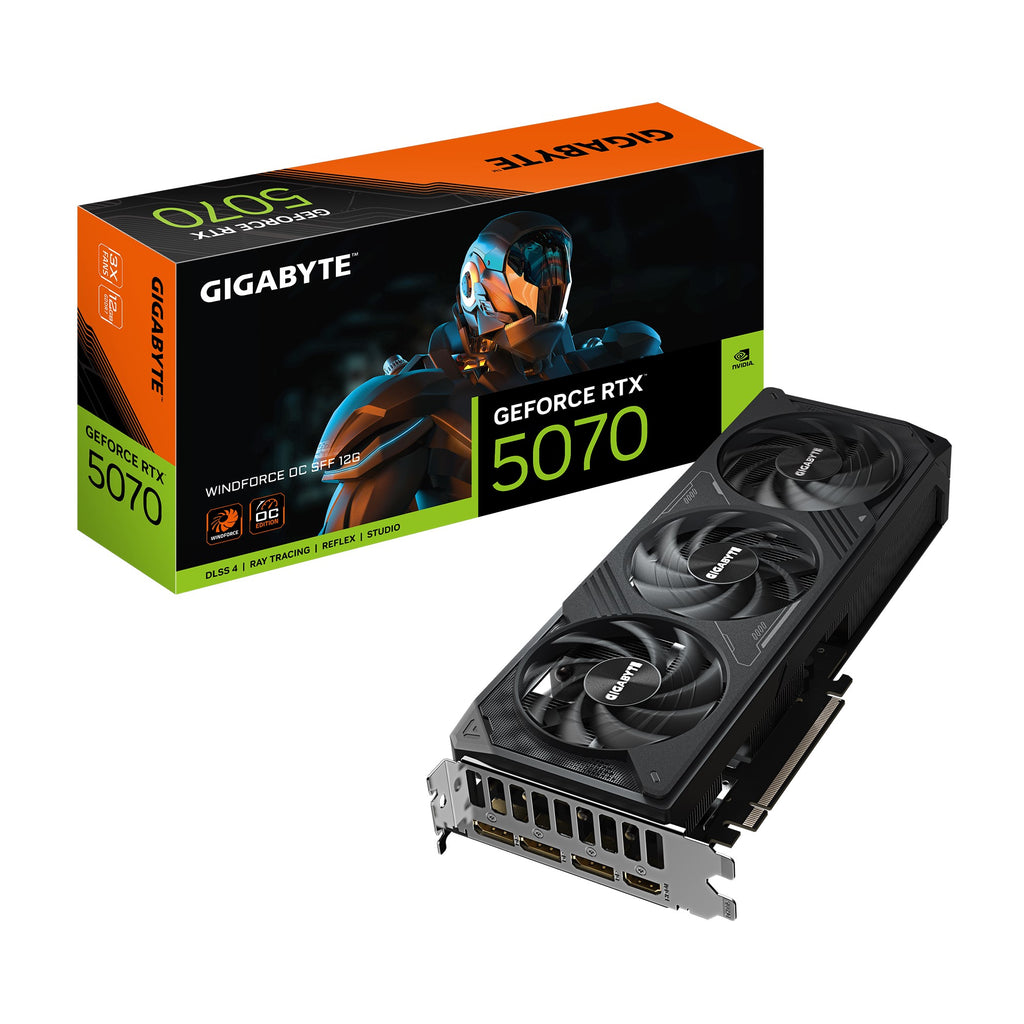

Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12G, 2542 MHz, CUDA 6144, 28 Gbps, GDDR7, 192 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b *3 HDMI 2.1b *1

GigabyteGeForce RTX™ 5070 WINDFORCE OC SFF 12G, 2542 MHz, CUDA 6144, 28 Gbps, GDDR7, 192 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b *3 HDMI 2.1b *1 SPECIFICATION Graphics Processing GeForce RTX™ 5070 Core Clock 2542 MHz (Reference card : 2512 MHz) CUDA® Cores 6144 Memory Clock 28 Gbps Memory Size 12 GB Memory Type GDDR7 Memory Bus 192 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=282 W=110 H=50 mm PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 750W Power Connectors 16 Pin*1 Output DisplayPort 2.1b *3 HDMI 2.1b *1 Accessories 1. Quick guide 2. 1x 12V-2x6 to 2x PCIe 8pin adapter FEATURES Powered by the NVIDIA Blackwell architecture and DLSS 4 Powered by GeForce RTX 5070 Integrated with 12GB GDDR7 192bit memory interface WINDFORCE cooling system Hawk fan Server-grade thermal conductive gel NVIDIA SFF-ready Reinforced structure NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators Fifth-Gen Tensor Cores Max AI performance with FP4 and DLSS 4 New Streaming Multiprocessors Optimized for neural shaders Fourth-Gen Ray Tracing Cores Built for Mega Geometry WINDFORCE COOLING SYSTEM The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling. HAWK FAN The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics. GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter. ALTERNATE SPINNING Reduce the turbulence of adjacent fans and increase airflow pressure. 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. SERVER-GRADE THERMAL CONDUCTIVE GEL To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads. LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink. SCREEN COOLING Extended heatsink allows air to pass through, providing better heat dissipation. EXCELLENCE IN ESSENTIAL NVIDIA SFF-READY Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power. REINFORCED STRUCTURE The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
