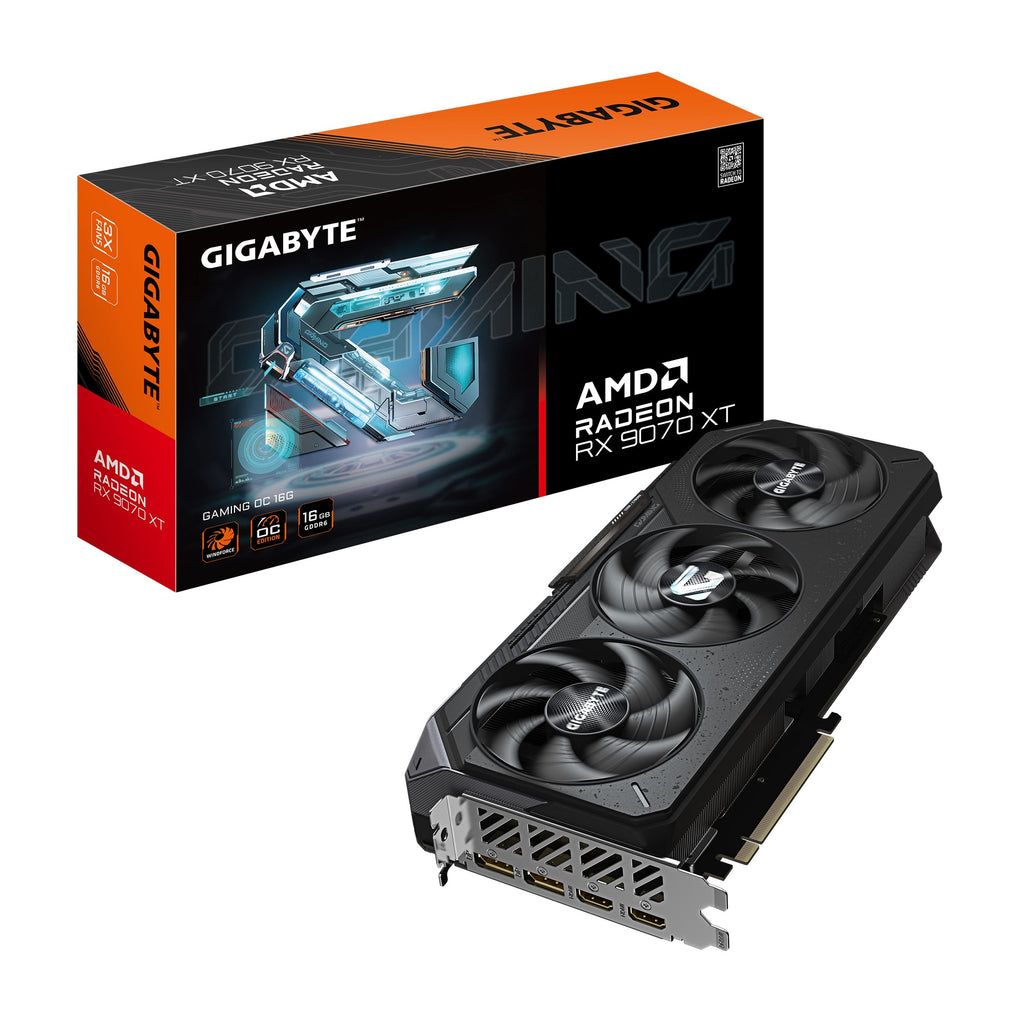

Gigabyte Radeon™ RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2

Gigabyte Radeon™ RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2 SPECIFICATION Graphics Processing Radeon™ RX 9070 XT Core Clock Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz) Game Clock* : up to 2520 MHz (Reference card: 2400 MHz) Stream Processors 4096 Memory Clock 20 Gbps Memory Size 16GB Memory Type GDDR6 Memory Bus 256 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=288 W=132 H=56 mm PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 850W Power Connectors 8 pin*3 Output DisplayPort 2.1a *2 HDMI 2.1b *2 Accessories Quick guide Note * “Boost Clock' is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151 * “Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147 FEATURES Powered by Radeon™ RX 9070 XT Integrated with 16GB GDDR6 256bit memory interface WINDFORCE cooling system Hawk fan Server-grade Thermal conductive gel RGB Lighting Dual BIOS (Performance / Silent) Reinforced structure WINDFORCE COOLING SYSTEM The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling. ASTONISHING EXTERIOR DESIGN The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology. MULTI-LAYERED VISUAL Like armor, the exterior features a multi-layered structure combined with varied surface material finishes. UNIQUE TEXTURE Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics. RGB LIGHTING With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER. SLIDING SIDE PLATE Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style. REINFORCED STRUCTURE The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
