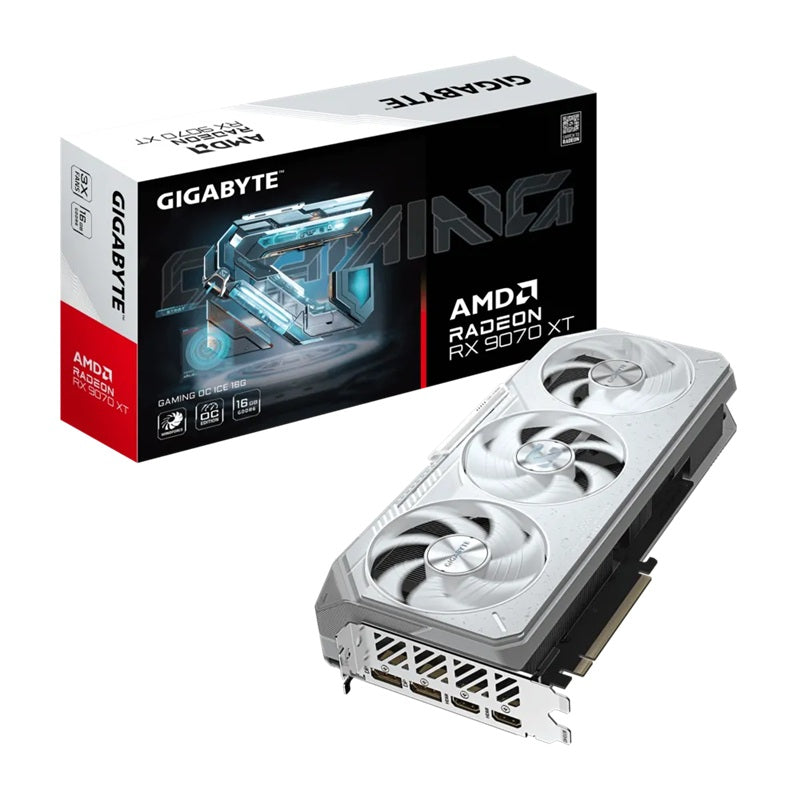

Gigabyte Radeon RX 9070 XT GAMING OC ICE 16G, GDDR6, 3060MHz boost, 2520MHz, 4096 cores, PCIe 5.0, 288mm, 850W, 2x DP 2.1a, 2x HDMI 2.1b

Gigabyte Radeon RX 9070 XT GAMING OC ICE 16G, GDDR6, 3060MHz boost, 2520MHz, 4096 cores, PCIe 5.0, 288mm, 850W, 2x DP 2.1a, 2x HDMI 2.1b SPECIFICATION Graphics Processing Radeon™ RX 9070 XT Core Clock Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz) Game Clock* : up to 2520 MHz (Reference card: 2400 MHz) Stream Processors 4096 Memory Clock 20 Gbps Memory Size 16GB Memory Type GDDR6 Memory Bus 256 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=288 W=132 H=56 mm PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 850W Power Connectors 8 pin*3 Output DisplayPort 2.1a *2 HDMI 2.1b *2 Accessories Quick guide Note * “Boost Clock' is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151 * “Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
